Awning Replacement Windows

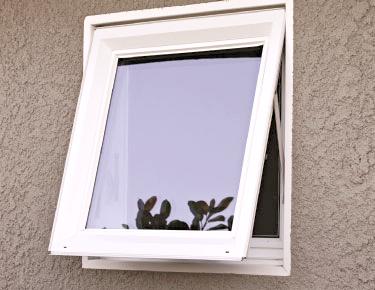

Awnings are frequently used below a picture window so you can have a maximum clear view with the picture window but still have ventilation available below.
Awning replacement windows are available only in the Coronado series as they need the 3-1/4" inch frame depth.
Standard Features
- AAMA GOLD label certified (American Architectural Manufacturers Association).
- NFRC Thermal Performance Certified (National Fenestration Rating Council).
- Passed voluntary stringent Forced Entry resistance test.
- Engineered for added security: Exterior glazed means the insulated glass-to-frame seal can only be penetrated from inside the home.
- Standard with multi-point locking system for increased security.
- Architectural beveled sash creates a refined, elegant and uniform appearance across the interior and exterior of the home.
- BetterVuemicro screen mesh provides 20% more optical clarity, increased airflow and insect protection.
- Interior screen design provides easy removal from inside the home.
- Double-strength glass standard, 3/4" overall insulated glass unit thickness for maximum energy efficiency.
- Platinum Elitetriple-chambered silicone foam spacer provides lower U-factors, sound transmission, and condensation resistance.
- Fusion-welded corners (.080 wall thickness) with multiple insulation chambers for superior energy efficiency and watertight strength.
- Compression glazing bead forms a gasket around the insulated glass unit for a watertight seal.
- Dual-wall glazing structure on sash dramatically reduces condensation.
- Stainless steel hardware standard for a lifetime of durability.
- FULL LIFETIME WARRANTY:Accidental glass breakage, parts, labor and fully transferable.
Frame Colors
Grid Styles
Grid Patterns
Awning windows are available with Colonial and Queen Anne grid patterns. Please see the Casement Window grid patterns for example photos.Glass Options
Glass Patterns- In addition to the clear, Low-E glass (standard), all windows can be ordered with any of the following glass patterns:
V-Groove Patterns
V-Groove glass has a pattern that is precision engraved on the side of the glass that faces the insulating air space. This provides an elegant, decorative effect while leaving your windows smooth and easy to clean. V-Groove glass is available in the following styles:
Insulated Glass Unit - All Anlin replacement windows are built standard with one of two exclusive Glazing Systems: Infinit-e Plus High Performance Glazing System or QuadraTherm Ultimate Dual Pane Insulation System. Both lead the industry in thermal performance.
Sound Pack - In addition to saving energy, Sound Pack (SP) greatly reduces the transmission of noise from outside your home to the inside making your home even quieter.
Safety / Tempered Glass - All Anlin replacement windows can be ordered with optional tempered glass, which if broken, disintegrates into hundreds of small pieces, thereby helping prevent a possible injury.
